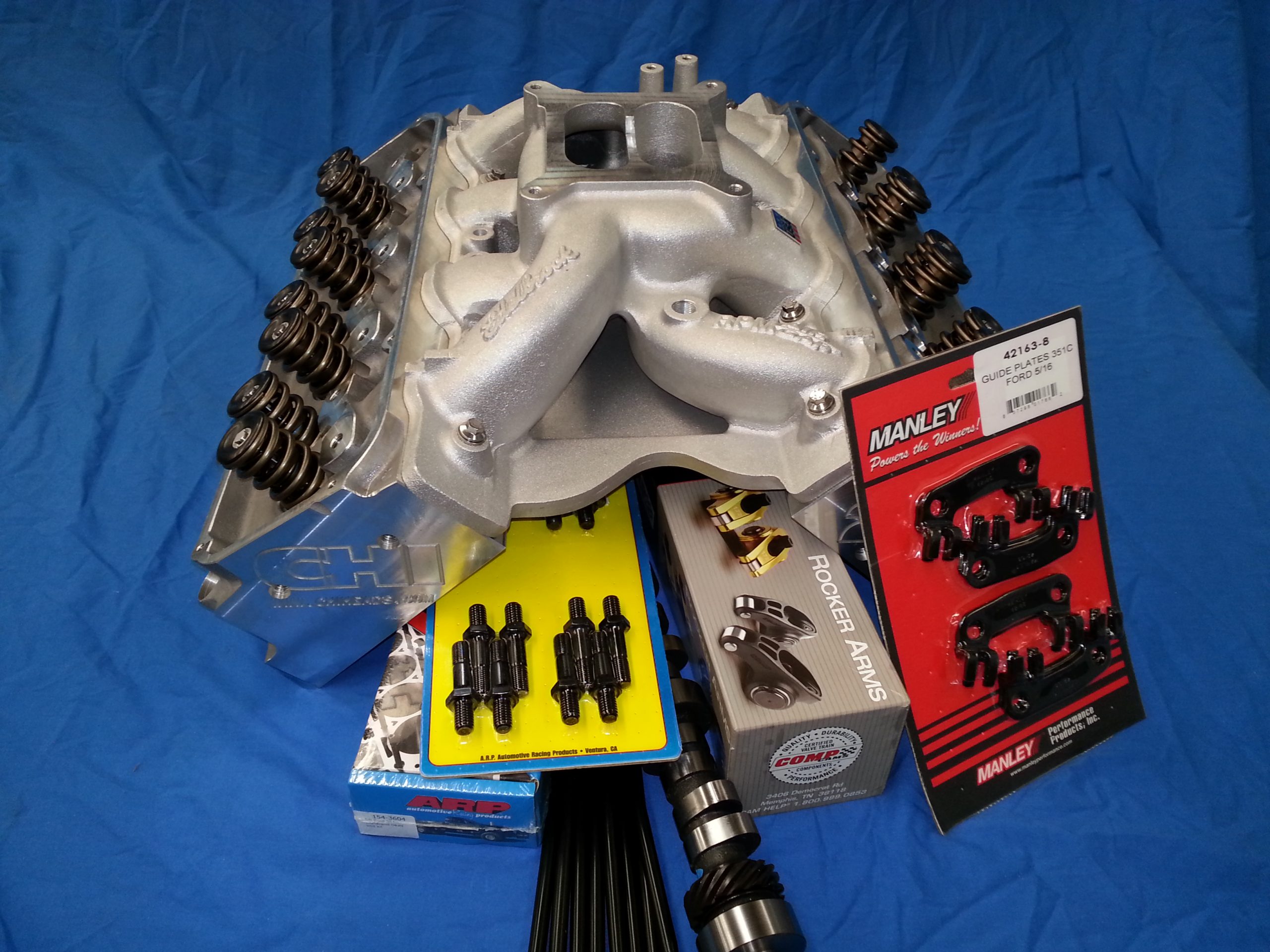

TEK001-9.2C stage 1 top end kit Cleveland 9.2″

SKU TEK001-9.2C Category


Entry level kit for high torque well mannered engines that need strong low down and mid range power. Plenty of hood clearance.

Power levels usually around 400hp+ on 351ci, 470hp+ on 393ci and 495hp+ on 408ci, 1600-5500rpm operating range.

Cylinder heads: CHI 2V190 C3 assembly with 60cc or 67cc chambers.

(we can calculate comp ratio for you if you can provide bottom end specs, deck height piston dish etc)

Manifold: Edelbrock air gap duel plane 2V

Camshaft: Hydraulic roller 229 / 233 @ .050″ .598″ & .596″ valve lift, ground on 108 lobe centres.

Lifters: Johnson Hydraulic roller “tie bar” retro fit.

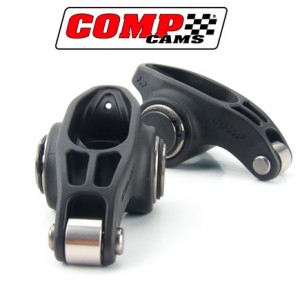

Rockers: Yella Terra billet YT 5006 or Comp Cams Ultra Pro Magnum stud mount roller rockers 1.73:1 ratio.

Pushrods: .110″ wall thickness 5/16″ diameter Crow Cams chromoly racing pushrods, two lengths inlet 8.00″ exhaust 7.90″.

Guide Plates: 5/16″ hardened steel.

Rocker studs: ARP screw in studs 7/16″

Head Bolts: ARP single hex head bolts.

Head Gaskets: Felpro 1013 performance head gaskets.

Manifold Gaskets: Felpro 1240 performance intake set.

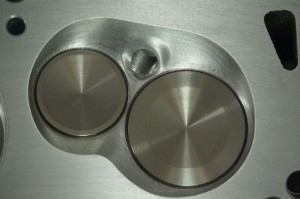

comp pro magnum rockers  roller lifters     airgap manifold  4V Ford Cylinder Head

Additional information

Weight 51 kg
