3V Ford Manifold
3v-ford-manifold3v-ford-manifold-63v-ford-manifold-53v-ford-manifold-43v-ford-manifold-3185-302-boss-manifold_l

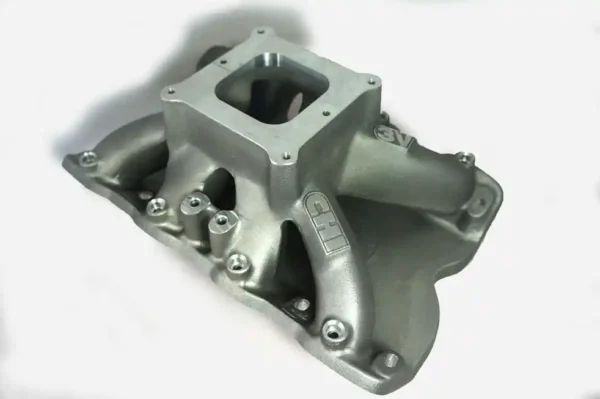

3V Ford Cleveland Manifold

$761.91$844.75

The Engine Masters Competition has been the perfect platform for the development of quality Street & Strip combinations and parts for the serious engine builder and or street car enthusiast.

Clear
SKU: INT3V Category:

Product Description

The Engine Masters Competition has been the perfect platform for the development of quality Street & Strip combinations and parts for the serious engine builder and or street car enthusiast.

Working closely with some of the worlds finest engine builders has enabled us to design and manufacture manifolds that have the best horsepower and torque curves on the market today.

This has been achieved through countless hours of testing and modifying a variety of different manifolds, which has helped us come up with a formula for optimising cross sectional area – velocity, and fuel atomisation characteristics.

Testimony to the effectiveness of our manifolds is our wins at the Engine Masters Competition. After testing many manifolds Jon Kaase used our 4500 3V manifold to produce the astounding numbers of 620ft/lb and 700hp from his pump gas 410cube Cleveland.

Even more impressive was the fact that the manifold was run as cast and with no internal hand

grinding whatsoever!

Manifolds are available to suit our 185cc, 208cc and 225cc Cleveland cylinder heads on 9.2”deck Cleveland and Windsor blocks, 9.5” Deck 351 Windsor blocks (Windsor conversions, will require the use of our CHI water crossover – bypass housing) and we also have a 8.2” deck 302 Windsor manifold to suit our 185cc & 208cc cylinder heads on 302 Windsor blocks.



TypePart No.DescriptionPortDeck HeightBlockCarb Range
3V 185cc ManifoldsINT3V185H8.2WCHI Ford Cleveland 3V 185cc Intake Manifold- 4150 Carb , 8.2" Windsor Block1858.2Windsor4150
INT3V185H9.2CCHI Ford Cleveland 3V 185cc Intake Manifold- 4150 Carb , 9.2" Cleveland Block1859.2Cleveland4150
INT3V185H9.2WCHI Ford Cleveland 3V 185cc Intake Manifold- 4150 Carb , 9.2" Windsor Block1859.2Windsor4150
INT3V185H9.5WCHI Ford Cleveland 3V 185cc Intake Manifold- 4150 Carb , 9.5" Windsor Block1859.5Windsor4150
3V 208cc ManifoldsINT3V208H8.2WCHI Ford Cleveland
3V 208cc intake manifold 4150 carb
2088.2Windsor4150
INT3V208/3H9.2CCHI Ford Cleveland 3V 208cc Intake Manifold- 4150 Carb , 9.2" Cleveland Block2089.2Cleveland4150
INT3V208/3H9.2WCHI Ford Cleveland 3V 208cc Intake Manifold- 4150 Carb , 9.2" Windsor Block2089.2Windsor4150
INT3V208/3H9.5WCHI Ford Cleveland 3V 208cc Intake Manifold- 4150 Carb , 9.5" Windsor Block2089.5Windsor4150
INT3V208D9.2CCHI Ford Cleveland 3V 208cc Intake Manifold- 4500 Carb , 9.2" Cleveland Block2089.2Cleveland4500
INT3V208D9.2WCHI Ford Cleveland 3V 208cc Intake Manifold- 4500 Carb , 9.2" Windsor Block2089.2Windsor4500
INT3V208D9.5WCHI Ford Cleveland 3V 208cc Intake Manifold- 4500 Carb , 9.5" Windsor Block2089.5Windsor4500
3V 225cc ManifoldsINT3V225H9.2CCHI Ford Cleveland 3V 225cc Intake Manifold- 4150 Carb , 9.2" Cleveland Block2259.2Cleveland4150
INT3V225H9.2WCHI Ford Cleveland 3V 225cc Intake Manifold- 4150 Carb , 9.2" Windsor Block2259.2Windsor4150
INT3V225H9.5WCHI Ford Cleveland 3V 225cc Intake Manifold- 4150 Carb , 9.5" Windsor Block2259.5Windsor4150
INT3V225D9.2CCHI Ford Cleveland 3V 225cc Intake Manifold- 4500 Carb , 9.2" Cleveland Block2259.2Cleveland4500
INT3V225D9.2WCHI Ford Cleveland 3V 225cc Intake Manifold- 4500 Carb , 9.2" Windsor Block2259.2Windsor4500
INT3V225D9.5WCHI Ford Cleveland 3V 225cc Intake Manifold- 4500 Carb , 9.5" Windsor Block2259.5Windsor4500

Additional Information

Cylinder Block Type

Windsor 8.2″, Windsor 9.2″, Windsor 9.5″, Cleveland 9.2″

Cylinder head type

185cc, 208cc, 225cc

Carburettor

4150 Holley, 4500 Dominator
