3V Ford Cleveland Premium Fibre Intake Gasket Set

$34.00$620.00

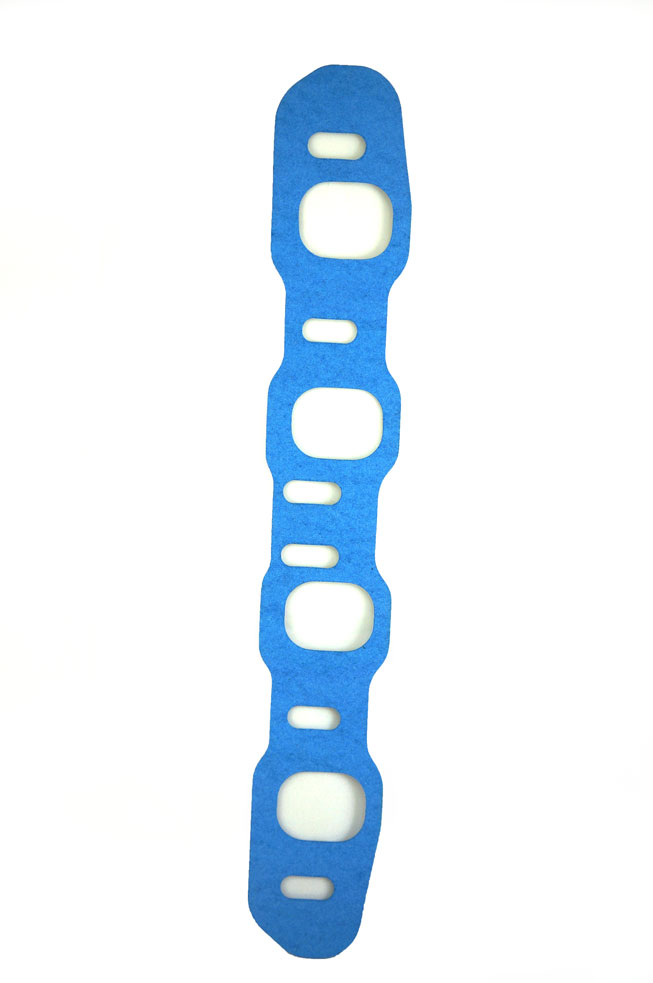

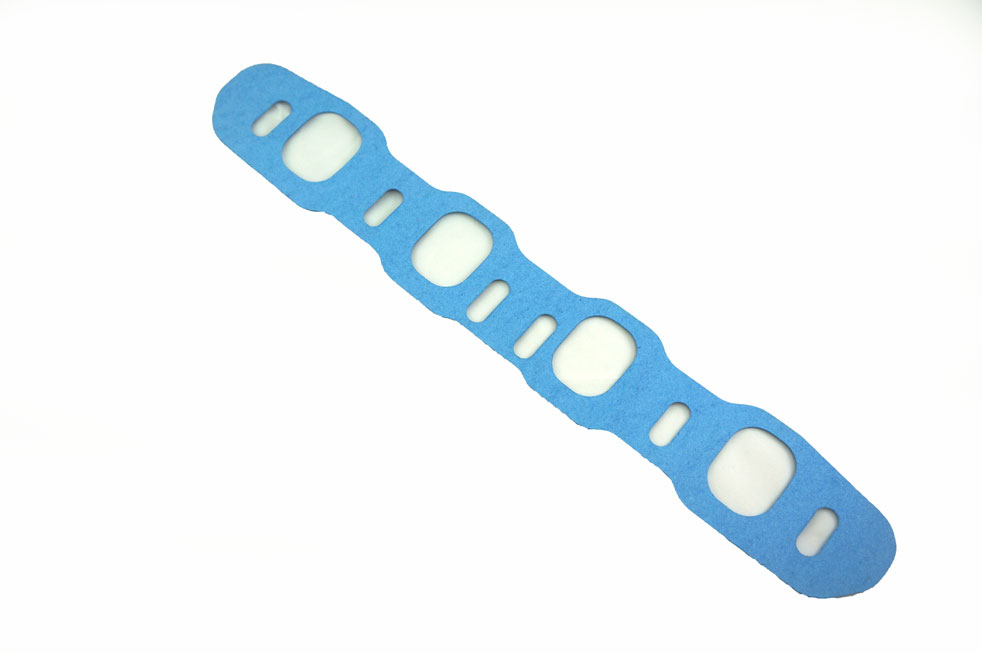

CHI manufactures its own inlet manifold gaskets to suit both the EM185 and 3V218cc heads. Made from a premium fibre material, these quality gaskets will resist cracking or splitting under the harshest conditions and are the perfect match for our cylinder heads.

Clear
SKU: IG3V Category:

Product Description

CHI manufactures its own inlet manifold gaskets to suit 3V heads from 208cc to 258cc. Made from S-207 a cellulose fiber gasket material with controlled-swell styrene butadiene rubber binder, these quality gaskets will resist cracking or splitting under the harshest conditions and are the perfect match for our cylinder heads.
Please note special gaskets are available to suit 185cc, 8.2″Boss and Raised Intake Pro Series heads.

TypePart No.DescriptionHeadMaterialThickness
Intake GasketsIG3VB185F-0603V Intake Gasket185-3VPremium Fibre0.060"
IG3V185F-1203V Intake Gasket185-3VPremium Fibre0.120"
IG3V225F-0603V Intake Gasket208-225 3VPremium Fibre0.060"
IG3V225F-1203V Intake Gasket208-225 3VPremium Fibre0.120"

Additional Information

Dimensions 15 x 5 x 2 mm
Cylinder head type

185cc, 185cc on 8.2″ deck, 208-260cc

Thickness

0.060mm, 0.120mm

Bulk Buy

No, Set of 10
