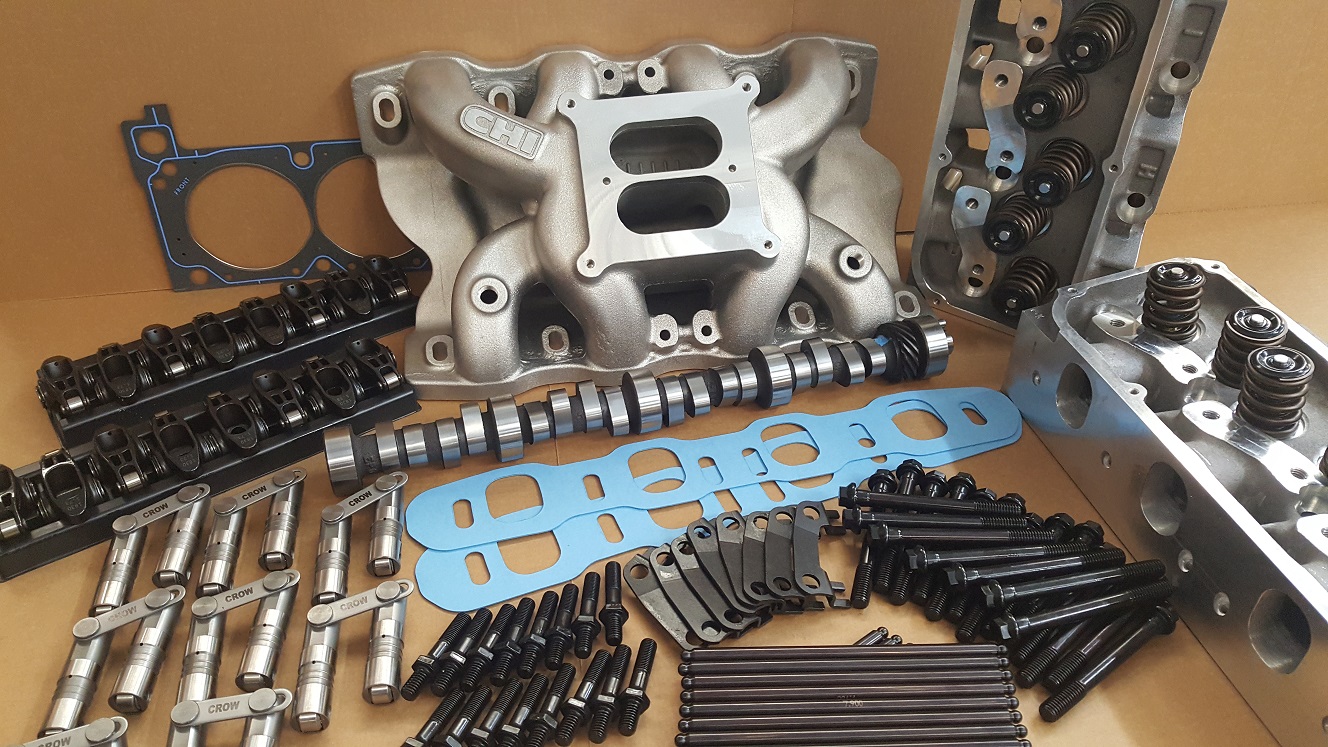

TEK002-9.2C STAGE 2 TOP END KIT CLEVELAND 9.2″

$6,402.00

Category:

Product Description

Stage 2  kit for good mid range and top end power and huge low to mid range torque 2000rpm – 5900rpm

Approximate power levels: 530hp+ on 408ci,  510hp+ on 393ci,  420hp+ on 351ci.

Cylinder heads:  CHI 3V 208 C3 assembly with 60cc or 67cc chambers

Manifold: CHI 208 dual plane. 5.80″ high

Camshaft: Hydraulic roller 232 / 236 @ .050″ .597″ & .598″ valve lift, ground on 108 lobe centres, SADI billet.

Lifters: Hydraulic roller “tie bar” retro fit.

Rockers: Comp Cams Ultra Pro Magnum stud mount roller rockers 1.73:1 ratio.

Pushrods: .138″ wall thickness 3/8″ diameter 210 radius Crow Cams chromoly racing pushrods, two lengths inlet 8.00″ exhaust 7.90″.

Guide Plates:  Manley 3/8″ hardened steel.

Rocker studs: ARP screw in studs 7/16″

Head Bolts: ARP single hex head bolts.

Head Gaskets: Felpro 1013 performance head gaskets.

Manifold Gaskets: CHI 3V premium fibre intake set.
