Kaase C-400 (400CFM) SBF - Cleveland Alloy Heads

Product ID: CHI Kaase C-400 Bare

	Price - 1 Pair (AUD) Price - 1 Pair (USD)	$4000   $3600
	Payment Terms

click to enlarge

click to enlarge

click to enlarge

Description:

The latest addition to our range of cylinder heads comes from a true US engine building mastermind. No one has spent more time dyno testing our cylinder heads and manifolds than Jon Kaase. Jon's experience testing our products over the years as part of the Engine Masters Competitions, have provided him with an in depth knowledge of what it takes to get the best results from our cylinder heads and manifolds. The knowledge gained from this testing has been combined with his wealth of experience as the number one engine builder in IHRA Pro Stock and has been applied to the new Kaase C-400. This brings to you the customer the very latest in Pro Stock technology to our C-400 cylinder head, making it the most advanced Cleveland Cylinder Head on the market today.

The C-400 comes in 2 fully CNC ported versions. At this level of performance CNC porting gives you the repeatable results needed to make the high horsepower level these heads are capable of achieving. The Kaase 2.85 C-400 has a 2.850" minimum cross sectional area on the intake port and the Kaase 3.1 C-400 has a 3.100" minimum cross sectional area. The 2.850" is designed to work with our 3V 3.5" 4500 manifold and is suited to 408+CI engines aiming for horsepower levels between the mid 700s to the low 800s. For horsepower levels beyond this, the 3.100" C-400 is designed to work with our soon to be released 3V 4.2" 4500 manifold.

The 2.850" C-400 flows 400cfm by just .750" valve lift with almost 340cfm at .500" lift, whilst the 3.100" C-400 flows nearly 350cfm at .500" lift.

To achieve these exceptional results, the Kaase C-400 comes with an all new combustion chamber as well as intake and exhaust port layouts. Both the inlet and exhaust ports have been raised. The exhaust port is just a further .100" higher than our 3V exhaust whilst the intake is .200" higher. The chamber is a very shallow and extremely efficient design with a total volume of just 45ccs. Valve angles remain standard Cleveland but the valve positions have been moved to optimize their location. These changes require a custom piston with at least a 1.200" compression height. CP Pistons have digitized the new chamber profile and we have custom pistons readily available. The relocated valve positions also require longer intake and exhaust valves. Using our custom valves will net valve spring installed heights in the 2.100" range, dependant on the choice of collets and retainers.

Although this cylinder head is designed with shaft mounted rockers is mind, Standard Cleveland roller rockers will work with this cylinder head and stud girdles will need slight modification on the intake side for them to fit.

Valve sizes are 2.190" on the intake and 1.650" on the exhaust. Our standard valve guide size for the C-400 is .3125" (5/16), but the heads can be ordered with 7MM and or 11/32 valve guides if necessary.

So when you're looking for the ultimate SBF or Cleveland cylinder head look no further than Jon Kaase designed C-400 for proven results and outstanding performance.

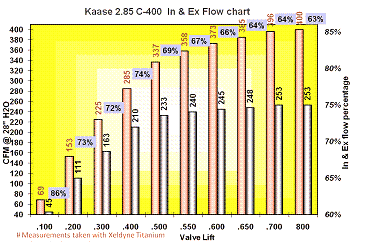

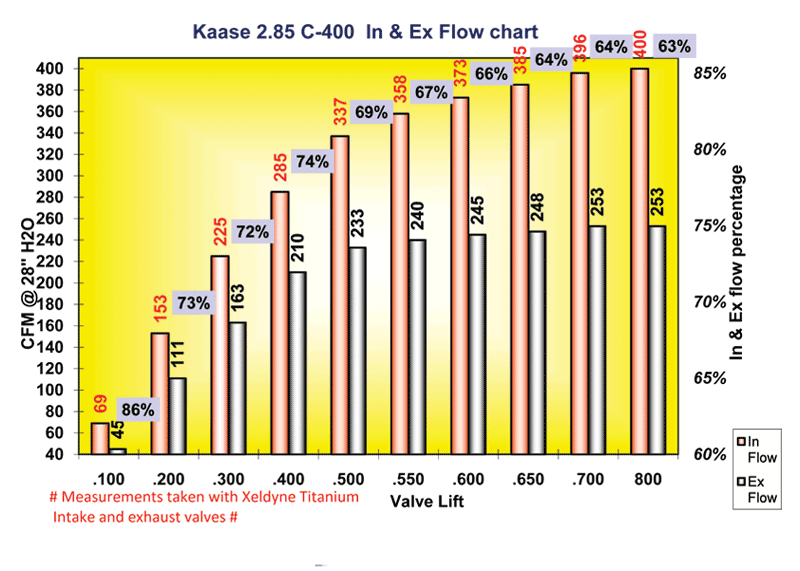

C-400 2.850 flow chart:

Click here to enlarge

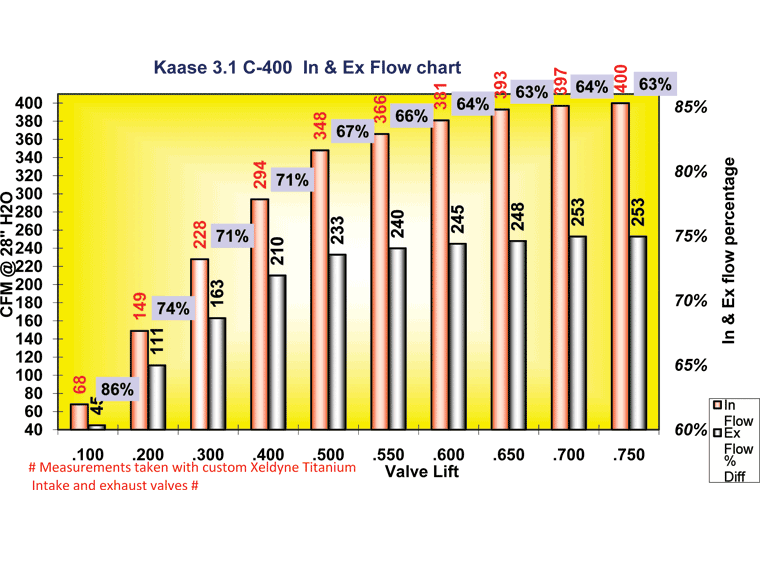

C-400 3.100 flow chart:

Click here to enlarge

In keeping with giving you results and not just air flow numbers we have already run the 2.850" C-400 on a customer’s engine with outstanding results.

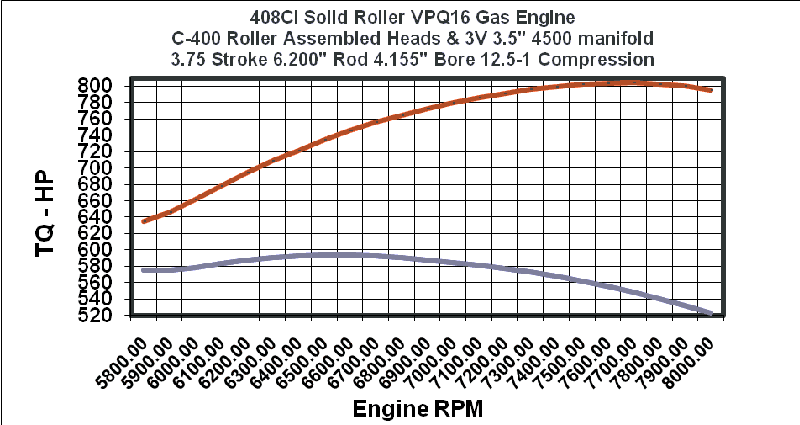

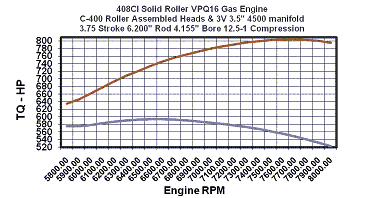

The engine was a 3.750" stroke, 4.155" bore, 6.200" rod combination with 12.5-1 compression. The roller camshaft was designed primarily for nitrous, as this was the ultimate goal of the customer and yet this motor made over 800hp and 590ft/lb of torque normally aspirated.

Click here to enlarge

So far this combination has run 8.60 @ 155mph in a 3300lb car on nitrous.

Kaase C-400 Competition Assembly Isky 9005A Springs

Product ID: CHI Kaase C-400 C/A 9005A

	Price - 1 Pair (AUD) Price - 1 Pair (USD)	$4950   $4455
	Payment Terms

Description:

This complete Competition cylinder head package comes with Ferrea 6000 series swirl polished stainless steel valves with hard chromed stems. We use Isky Chrome - Molly - 7 Degree Retainers, Isky Machined Valve Locks (not the cheaper stamped steel versions), and Isky 9005 Triple Competition valve springs that can handle up to .700" valve lift.

This package is ideal for large solid cams of up to .625" lift (be sure to subtract valve lash from your camshaft specs when determining net valve lift), that are raced on a regular basis. Heads are finished of with matching Isky hardened spring pad locators to positively locate the valve spring and Viton valve stem seals for unsurpassed oil control.

Kaase C-400 Roller Assembly Nextek 221424 Roller Springs

Product ID: CHI Kaase C-400 R/A 221424

	Price - 1 Pair (AUD) Price - 1 Pair (USD)	$5500   $4950
	Payment Terms

Description:

Our complete Competition Roller Cam cylinder head package comes with Ferrea 6000 series or REV swirl polished stainless steel valves with hard chromed stems. We use Manley Titanium 10 Degree Retainers, Manley Machined 10 Degree Valve Locks and Manley Nextek 221424 Competition Roller valve springs.

This package is ideal for large roller cams of up to .800" valve lift , that are drag - road raced on a regular basis. Heads are finished of with matching Manley hardened spring pad locators to positively locate the valve spring and Viton valve stem seals for unsurpassed oil control.
